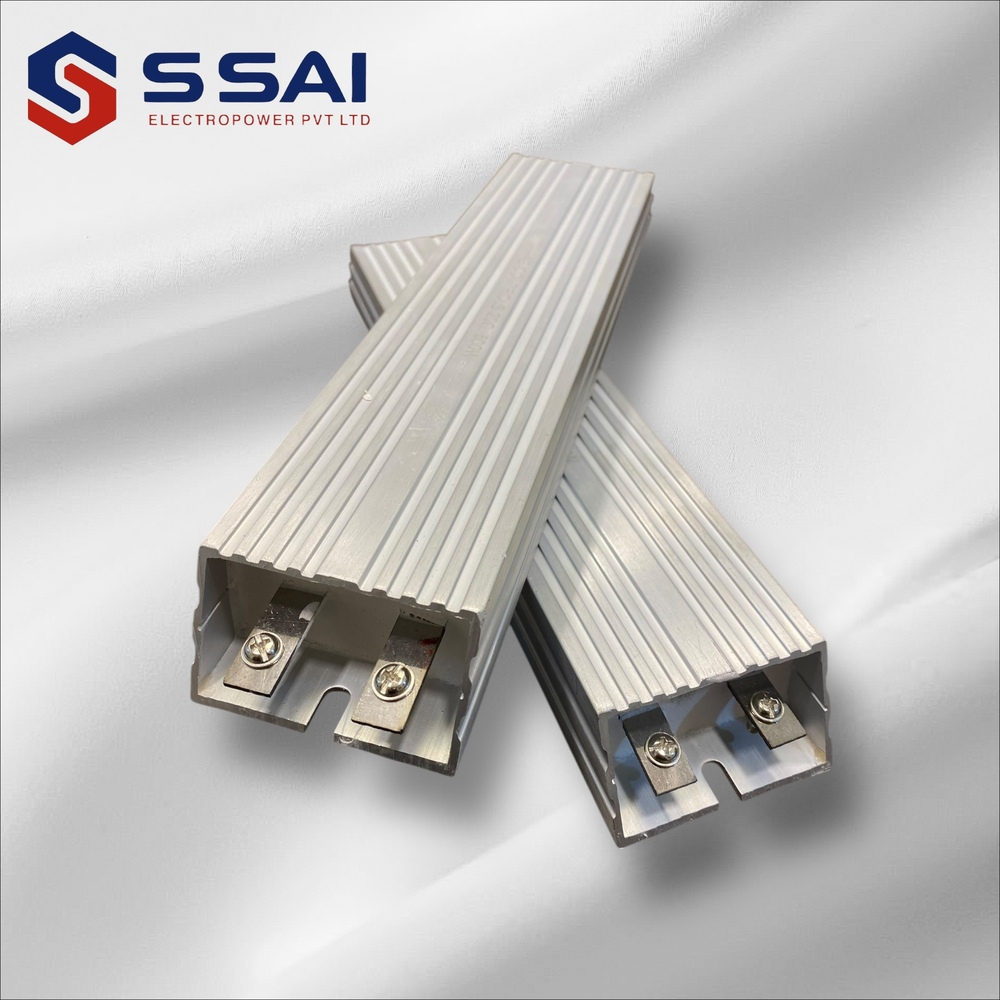

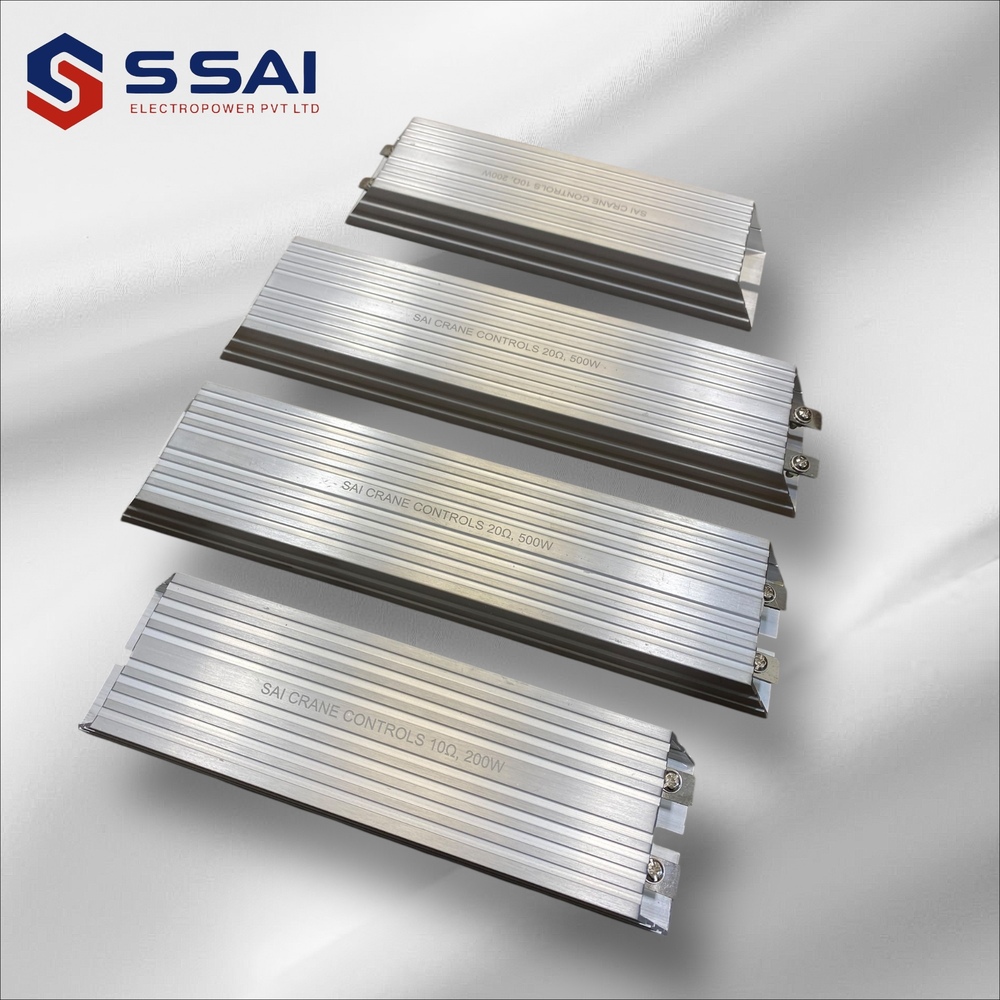

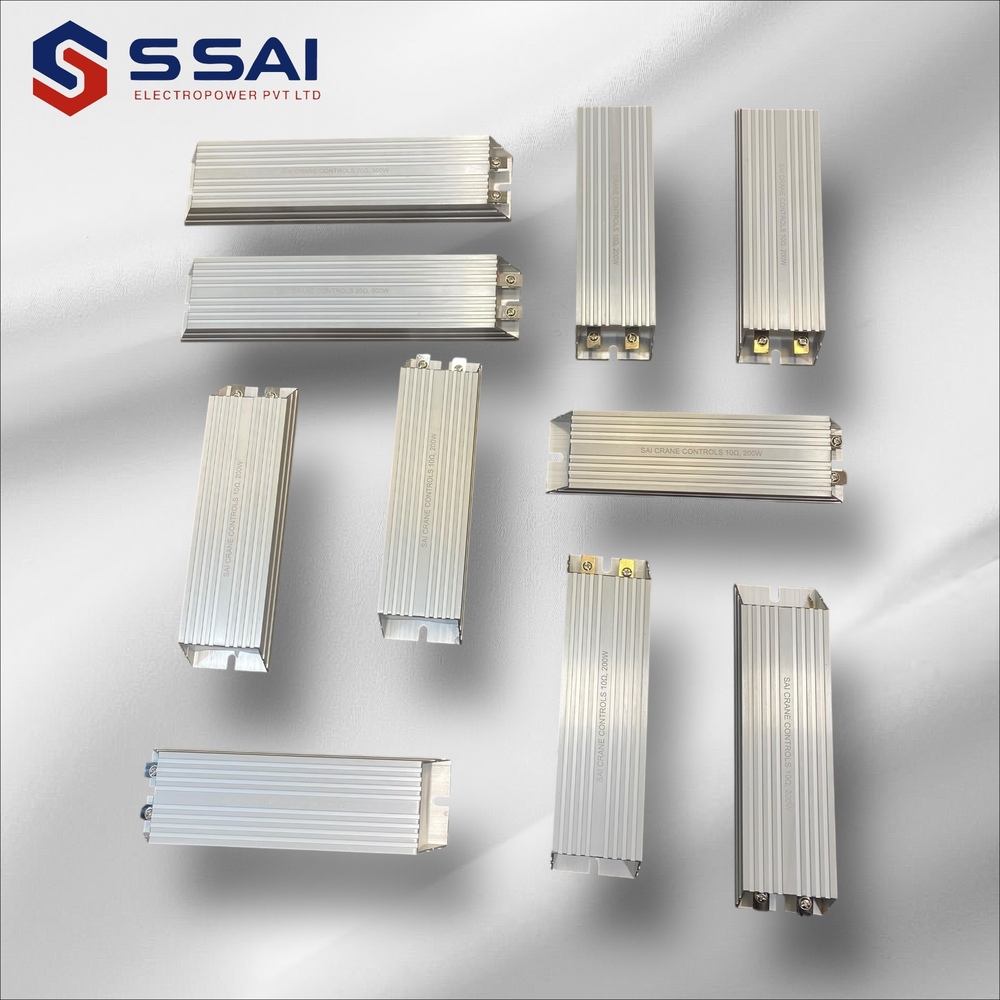

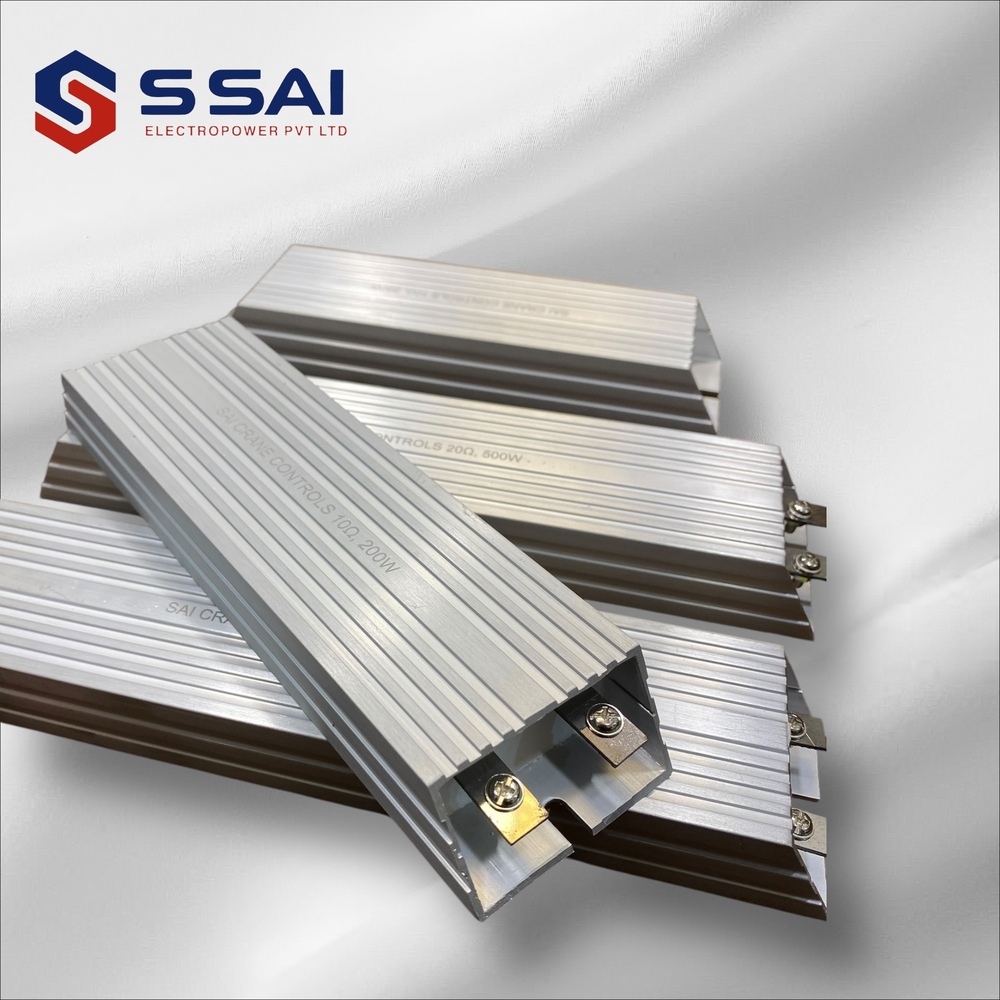

Electric Aluminum Housed Braking Resistor

Send Inquiry

Request To Call Back

Electric Aluminum Housed Braking Resistor

Get a Price/Quote

MOQ : 10 Pieces

Electric Aluminum Housed Braking Resistor Specification

Power Supply
Electric

Usage
For VFDs, elevators, cranes, and industrial automation

Components
Wire-wound resistor element, Aluminum enclosure, Terminal connectors

Input
AC Power

Power Source
Electric

IP Rating
IP54

Operating Temperature
-25C to +250C

Output
Dissipated heat (braking energy)

Interface
Screw/Terminal connection

Features
Compact design, corrosion-resistant, heat dissipation, high overload capacity

Response Time
Instant (milliseconds)

Thermal Conductivity
High, due to aluminum housing

Product Type
Aluminum Housed Braking Resistor

Application
Braking applications, frequency inverter drives

Rated Voltage
220V AC

Supply Voltage
110V-500V (customizable)

Size
Customizable as per requirement

Dimension (L*W*H)
110mm x 18mm x 18mm (Typical)

Function
Dynamic braking for electric motors and drives

Color
Silver / Metallic Aluminum

Weight
Approx. 300g

Thickness
18mm

Current Rating
2A - 20A (as per model)

Capacity
0.1kW - 5kW (as per model)

Frequency
50Hz / 60Hz

Enclosure Material
Anodized Aluminum extruded casing

Flame Retardant Rating
UL94-V0

Connection Type
Screw terminals or flying leads

Mounting
Through holes for panel/rack mounting

Insulation Resistance
>= 1000M

Vibration Resistance
High (meets industrial standards)

Standards Compliance
CE, ROHS, ISO9001

Max Surface Temperature
up to 350C during operation

Tolerance
5%

Life Expectancy
> 10,000 hours continuous operation

Cooling Method
Natural air cooling

Resistance Range
0.1 - 3k

Electric Aluminum Housed Braking Resistor Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Electric Aluminum Housed Braking Resistor

Spotlight your automation systems with our rare, top-rated Electric Aluminum Housed Braking Resistor - the splendiferous solution for demanding dynamic braking applications. Engineered with a top-drawer anodized aluminum casing, it offers perfect durability, exceptional thermal conductivity, and high vibration resistance. With a wide resistance range (0.1-3k), top precision (5% tolerance), and a robust life expectancy exceeding 10,000 hours, it adapts beautifully to VFDs, elevator brakes, cranes, and other industrial drives. Choose this CE, ROHS, and ISO9001-compliant performer for assured safety, reliability, and effortless panel or rack mounting.

Premium Material and Versatile Application

The Electric Aluminum Housed Braking Resistor is used across varied industries for reliable braking in VFDs, elevators, and cranes. Its anodized aluminum enclosure ensures optimal heat dissipation, corrosion resistance, and structural integrity. The compact design allows straightforward surface mounting on control panels or equipment racks. Perfectly suited for industrial automation and frequency drive systems, its robust construction with a flame-retardant rating of UL94-V0 ensures both safety and longevity in challenging environments.

FOB Details, Packaging, and Pricing Information

Electric Aluminum Housed Braking Resistors are shipped globally from major Indian FOB ports. Each unit is securely packaged for safe arrival, ensuring the top condition at your facility. Enjoy competitive sale pricing based on order volume and customization. Typical delivery spans 2-4 weeks after order confirmation, with flexible payment terms available for your convenience. Request a quote today for lead times and packaging options-trusted supply for manufacturers, systems integrators, and automation professionals.

FAQ's of Electric Aluminum Housed Braking Resistor:

Q: How does the Electric Aluminum Housed Braking Resistor improve the safety of motor drives?

A: By instantly dissipating excess braking energy as heat, this braking resistor protects drives, motors, and inverters from dangerous overvoltages, thus enhancing operational safety.

Q: What applications are ideal for this braking resistor?

A: This resistor is perfectly suited for frequency inverters, VFDs, elevators, cranes, hoists, and a wide range of industrial automation systems demanding reliable dynamic braking.

Q: Where can this resistor be installed?

A: Thanks to its compact size, customizable dimensions, and through-hole mounting, it can be easily installed on control panels, equipment racks, or enclosures within industrial environments.

Q: What benefits does the anodized aluminum housing offer?

A: The anodized aluminum enclosure provides superior heat dissipation, corrosion resistance, and high durability, ensuring long service life under intense operating conditions.

Q: What is the life expectancy and reliability of this product?

A: This braking resistor delivers a life expectancy of over 10,000 hours under continuous operation, certified by CE, ROHS, and ISO9001 standards for unbeatable reliability.
